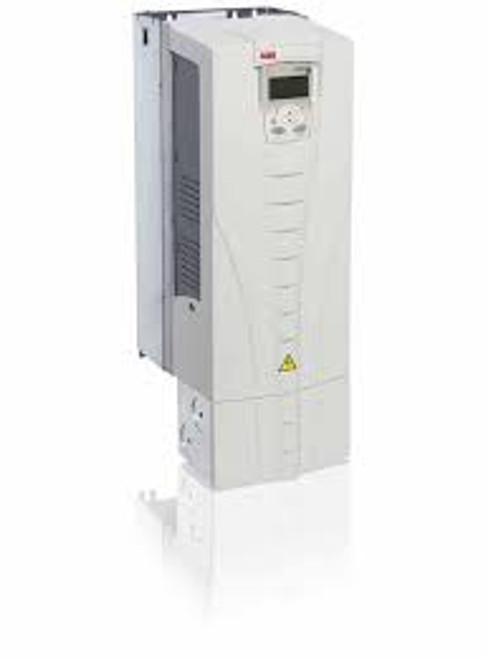

ABB Aqua Drive 30 HP-240 VAC/38.A AND 31A ACQ550-CC-088A-2+B055
Call For Pricing 714-564-9100
- Brand
- ABB AQUA DRIVE
- SKU:
- 26-4076
- UPC:
- 26-4076
- Weight:
- 99.00 LBS
ABB Aqua Drive 30 HP-240 VAC/38.A AND 31A - ACQ550-CC-088A-2+B055
Swimming Pool Circulation Pump Variable Speed Drive
A complete integrated control system capable of controlling the circulation pump motor speed automatically throughout all phases of the filtration cycle including backwash, shut down or slow periods. The UL listed drive enclosed in a Nema12 enclosure shall include the following: Nema 12 enclosure with full gasket, steel enclosure powder coated. Vent fan and filter. Main disconnect and circuit breaker. Adjustable drive with graphics display PLC Pre-programmed with pump logic. Control transformer. Line reactor. Main motor contractor. By-pass contractor. Heavy duty bonding and grounding connections. ID labels on inside door and outside of enclosure. optional flow meter and saddle or pressure transducer.
When you need simplicity and intelligence in one self-contained solution the ACS550-SS covers a wide range of options. Ideal for variable and constant torque applications from pumps and fans to conveyors and mixers as well as many other variable and constant torque applications. Enjoy plug and play convenience right from the start. No customizing or special product engineering required. Monitor your savings easily with the built-in counters, which display energy savings in kilowatt hours, carbon dioxide emissions or local currencies.
A reliable system is critical to protecting, supplying and recycling water. What you choose matters. The world trusts you to make good decisions and you take that responsibility seriously. We’ll help safeguard your system to run efficiently and Provide the value and dependability
you demand. System reliability, pump efficiency and a suite of industry-specific controls enable you to successfully maintain a reliable water cycle management system. With this in mind, we designed our variable speed AC drives specifically for Water/Wastewater environments and applications. These devices are available, as standard, for panel-mounting or factory direct NEMA-1, drip-proof NEMA-12 or outdoor-rated NEMA-3R enclosures.
A water industry start-up assistant resides within the intuitive, full graphic display panel to aid in commissioning submersible, centrifugal or positive displacement pumps. This control panel can also be mounted remotely, or on the cover of the drive, and used to upload, store and download parameters in multiple drive setups.
Application Control
The extensive library of pre-programmed, water-specific application macros allows rapid configuration of inputs, outputs, and parameters to maximize convenience and minimize start-up time. To simplify troubleshooting, the drive uses a real time clock, which allows for accurate time stamps on faults, resets and more. Two integral option slots, that can be configured for additional relay outputs (i.e.drive status indications, timed or pump staging applications) or a variety of different communication bus adapters, are at your disposal.
Additional Information
ABB PDF
Product Overview
Engineering Data & Ratings
Connection & Power Drawing
Dimensional Drawing's
