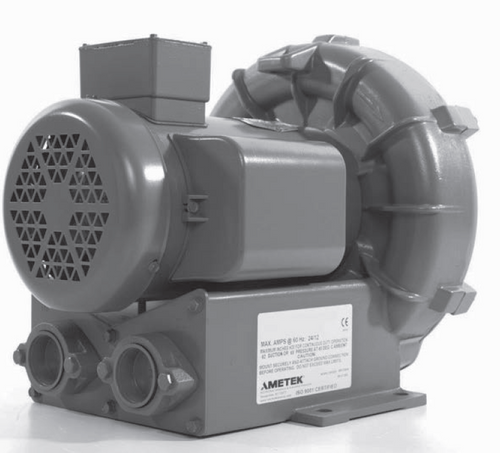

AMETEK DR404AL72M - Commercial Air Blower 1.0HP; ODP; 230/460V; 3 Phase; 50/60 Hz - 037406

EG Rotron Commercial Air Blower

Features

• Manufactured in the USA - ISO 9001 and NAFTA compliant
• CE compliant - Declaration of Conformity on file
• Maximum flow : 105 SCFM
• Maximum pressure: 58 IWG
• Maximum vacuum 50 IWG
• Standard motor: 1.0 HP, TEFC
• Cast aluminum blower housing, impeller & cover; cast iron flanges (threaded)
• UL & CSA approved motor with permanently sealed balled bearings and Class B rated thermal protection
• Inlet & Outlet internal muffling
• Quiet operation within OSHA Standard

Motor Options

• International voltage & frequency (Hz)
• Chemical duty, high efficiency, inverter duty or industry-specific designs
• Various horsepower for application-specific needs

Blower Options

• Corrosion resistant surface treatments and sealing options
• Remote drive (motorless) models
• Slip-on or face flanges for application-specific need

Accessories

• Flowmeters reading in SCFM
• Filters & moisture separators
• Pressure gauges, vacuum gauges, & relief valves
• Switches - air flow, pressure, vacuum, or temperature
• External mufflers for additional silencing
• Variable frequency drive package

Additional Information

Data Sheet
