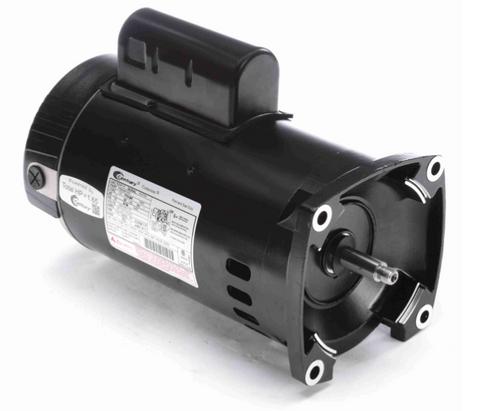

Century Replacement Motors - E-Plus, Square Flange, Threaded Shaft, 1 HP, 115/230 Volt - B2841V1
Total HP = 1.65
Features
- Open & Accessible Terminal Board & Wiring Compartment
- Voltage Change Device
- Sealed Ball Bearings
- 50°C Ambient
- Stainless Steel Shaft
- UL 1081 Design
- Switchless
- Threaded Shaft
- Permanent Split Capacitor
- Open Dripproof
General Specifications
Model : | B2841V1 | Catalog No : | B2841V1 |
Part Description : | MODEL-CFHP-56FR | Category : | Induction Motors |
Stock : | Yes |
Nameplate Specifications
Output HP : | 1.0 Hp | Output KW : | 0.75 kW |
Frequency : | 60 Hz | Voltage : | 208-230/115 V |
Current : | SF 7.8-7.4/14.8 A | Speed : | 3450 rpm |
Service Factor : | 1.65 | Phase : | 1 |
Duty : | Continuous | Insulation Class : | F |
Frame : | Y56Y | Enclosure : | Drip Proof |
Overload Protector : | Thermally Protected | Ambient Temperature : | 50 °C |
UL : | Recognized | CSA : | Y |
Technical Specifications
Electrical Type : | Permanent Split Capacitor, Single Or Dual Voltage | Poles : | 2 |
Rotation : | Counterclockwise Pump End | Mounting : | Round |
Motor Orientation : | Horizontal | Drive End Bearing : | BALL |
Opp Drive End Bearing : | BALL | Frame Material : | Rolled Steel |
Shaft Type : | Threaded | Overall Length : | 13.40 in |
Frame Length : | 9.00 in | Shaft Diameter : | 0.625 in |
Shaft Extension : | 0.91 in | UPC : | 786674061270 |
Weight : | 30.00 LB |
