Duratech Interlock Perpendicular PVC Grating -White
- Brand
- PoolEquip
- SKU:
- 16-9001
- Weight:
- 32.00 LBS
- Shipping:
- Calculated at Checkout
4 Great reasons to buy from us:

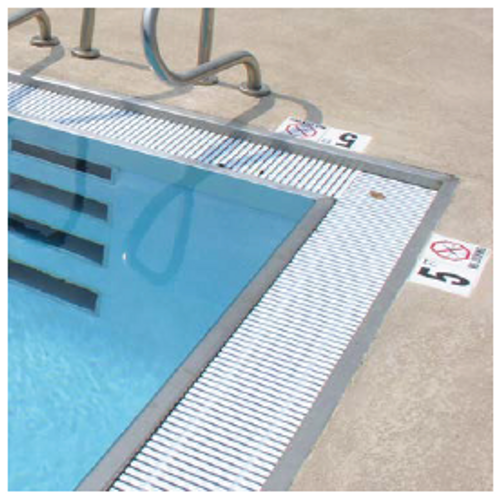

DuraTech™ PVC Interlock Pool Grating – Heavy-Duty, Slip-Resistant, and Customizable in White
DuraTech™ PVC Interlock Grating sets the standard for strength, versatility, and easy installation in commercial and residential pool environments. Engineered for performance and durability, this high-strength perpendicular grating system features a patented interlocking design that easily snaps into place for both straight and curved (radial) gutter applications. Designed to fit gutter widths ranging from 8" to 18", this heavy-duty grating supports loads over 3,000 lbs, making it ideal for high-traffic aquatic facilities, waterparks, and competition pools.
Crafted in the USA using 100% virgin, exterior-grade PVC, DuraTech Interlock Grating is UV-stabilized and chemically resistant to withstand prolonged exposure to harsh pool environments without warping, discoloring, or breaking down. Its embossed, non-slip surface enhances safety by offering exceptional foot traction and comfort, even in wet conditions, while promoting fast water drainage.
Product Size & Ordering Requirements
| Item Number | Grate Width | Minimum Box Length | Sold By |
|---|---|---|---|
| 16-9001 | 4" | 20 feet | Per foot |
| 16-9002 | 6" | 20 feet | Per foot |
| 16-9003 | 8" | 18 feet | Per foot |
| 16-9004 | 10" | 18 feet | Per foot |
| 16-9005 | 12" | 18 feet | Per foot |
| 16-9006 | 14" | 9 feet | Per foot |
| 16-9007 | 16" | 9 feet | Per foot |
| 16-9008 | 18" | 9 feet | Per foot |
Key Features & Benefits
-
Superior Strength – Supports over 3,000 lbs with minimal deflection; tested to ASTM D790-10 load standards.
-
Slip-Resistant Surface – Embossed texture provides safe and comfortable footing in high-traffic wet areas.
-
Snap-Fit Installation – Unique interlocking design allows for quick, secure fitting in both straight and radius configurations.
-
Wide Compatibility – Accommodates gutter widths from 8” to 18”; available in multiple sizes.
-
Built to Last – Made with UV-inhibited PVC for colorfastness and long-term resistance to sun, chlorine, and pool chemicals.
-
Custom Options Available – Radius bends, custom configurations, and color options ensure design flexibility.
-
10-Year Manufacturer Warranty – Peace of mind backed by a decade-long performance guarantee.
-
Made in the USA – Manufactured to the highest quality standards using premium materials.
Technical Specifications
| Specification | 8"–12" Grating | 14"–18" Grating |
|---|---|---|
| Width of Interlock Top | 5/8" | 3/4" |
| Max Gap Between Bars | 3/8" | 3/8" |
| Open Area (per sq. ft.) | 37.5% | 31.25% |
| Grating Height | 1" | 1" |
| Load Deflection (300 lbs @ 18”) | 3/16" | 3/16" |
| Interlocking Support Spacing | 2 @ 5-3/4” O.C. | 3 @ 5-1/2” O.C. |
Ideal For:
-
Commercial Pools
-
Aquatic Centers
-
Waterparks
-
Municipal & Hotel Pools
-
Competitive Swimming Facilities
Enhance pool safety, durability, and aesthetics with DuraTech Interlock PVC Pool Grating—where high performance meets low maintenance.
