$880.20

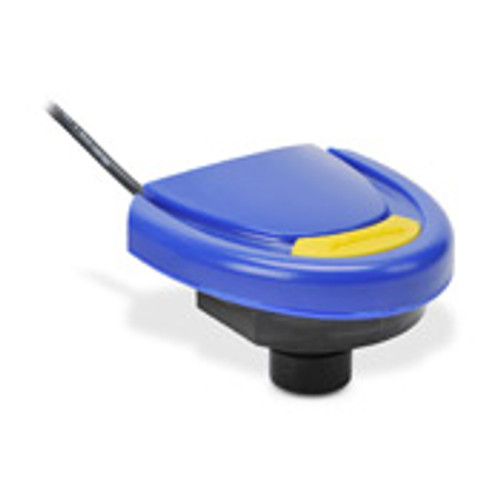

Flowline - 0' to 9' Non-Contact Level Transmitter - LU27-01
- Brand
- Flowline
- SKU:
- 28-1110
- Weight:
- 1.50 LBS
- Shipping:
- Free Shipping
4 Great reasons to buy from us:
Flowline - 0' to 9' Non-Contact Level Transmitter - LU27-01
| Display: None | Max. Pressure: 30 psi |
| Enclosure Material: Polycarbonate | Gasket Material: Viton |
| Classification: General Purpose | Height: 2.9" |
| Width: 4.0" | Mounting: 1" NPT |
| Input Voltage: 24 VDC (loop) | Dead Band: 4" |
| Temp. Range: -4 to 140 Degrees F | Standards: cFMus, CE, RoHS |
| Enclosure Rating: Type 6P | Configuration: WebCal |
| Overall Length: 4.1" | Range: 9.8 ft. |
| Beam Width: 2" | Resolution: 0.019" |
| Material: PVDF | Accuracy: +/- 0.2% of Range |
| Output: 4 to 20mA, 2-wire | Item: Noncontact Ultrasonic Level Sensor |
| Country of Origin (subject to change): United States |
Description:
Ultrasonic Level Transmitter, Level Measurement, Classification General Purpose, Range 9.8', Accuracy +/- 0.2 Percent of Range, Resolution 0.019 In., Dead Band 4 In., Beam Width 2 In., Configuration WebCal, Input Voltage 24 VDC (loop), Output 4-20 mA, 2-wire, Temp. Range -4 to 140 Degrees F, Max. Pressure 30 psi, Enclosure Rating Type 6P, Enclosure Material Polycarbonate, PVDF, Gasket Material Viton, Mounting 1 In. NPT, Display None, Standards cFMus, CE, RoHS, Length 4.1 In., Width 4.0 In.
Please call for questions or technical assistance! 714-564-9100
