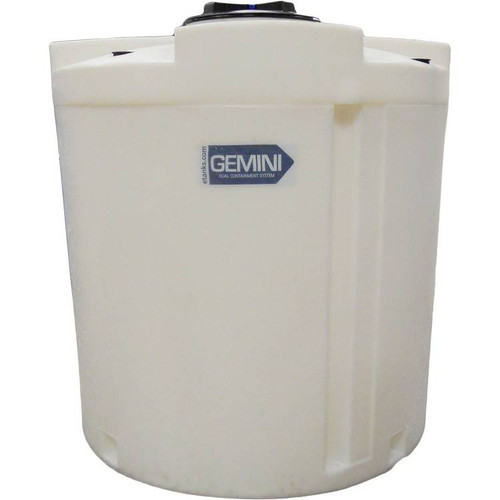

Peabody Gemini Dual Containment- 500GAL / Natural (01-33790)

Peabody Gemini Dual Containment- 500GAL / Natural (01-33790)

Gemini Tanks, also known as Double Wall Tanks, are an excellent choice when you’re looking for safe storage of chemicals and other products where a Secondary Containment Tank system is required. To create your Dual Wall Tank setup, look at the various sizes we have in our Gemini Tanks and then give our customer service a call to complete the process.

All Peabody Gemini Tanks made from LDPE are available WQA Gold Seal NSF/ANSI 61 Compliant. In the colors Natural (Vanilla) or Gemini Blue XLPE NSF/ANSI 61 Compliant from 40 GALLONS & Up.

Linear Polyethene (LDPE) construction. Polypropylene (PPL) XLPE & PDVF available- Superior Chemical resistance for acids, caustics, sodium hypochlorite, biocides etc. Handles aggressive applications that stainless steel will not.

Durable dual wall construction - Standard tanks rated 1.5 SPG, 1.9 SPG Heavy Duty available. Tank in a Tank design for instances where primary tank fails the chemical will be safely contained in secondary tank.

New standard secondary tank leaf detection port. For optional leak detection alarm. Integral pump mounting platform. Lid has 240 POUND rating allowing for use with metering pump or mixer mounted directly to tank dome. Models with Sump reservoir collects and drains liquid back to primary.

Pump pick up tube port - Install pump suction line with check valve quickly and easily. Once installed tank contents are sealed from outside environment.

Integral mouse door - Molded directly into most Gemini models, Recessed mouse door allows for inexpensive installation of optional bottom bulkhead fitting for flooded suction connection or bottom fill.

Custom colors and mold in graphics custom colors available , Subject to minimum order quantity. Private label mold in graphic is molded directly into tank and wont weather crack peel or deteriorate.

All of our tanks meet or exceeded the EPA's Requirements for secondary containment under EPA regulation 40-CFR. For a wide range of Gemini Accessories!

Reverse Level Indicator Upon Request

Additional Information

320 Gallon Gemini Tank
