$1,850.76

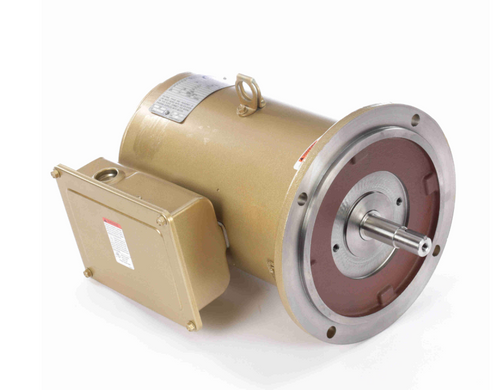

Pentair C Series 5HP Motor - 230 volts Single Phase - 071366S
- Brand
- Century
- SKU:
- 26-0325
- Weight:
- 108.00 LBS
- Shipping:
- Free Shipping
4 Great reasons to buy from us:
Century / Purex Replacement Pump Motors - 5 HP "C" Series, 230 Volt, Single Phase - V214M2
Features
- 40°C Ambient
- Reversible
- External Slinger
- Purex Hydrotech East Side "L" Series and "C" Series Commercial Pump
- Sealed Ball Bearings
- Keyed Shaft
- Purex Replacement
General Specifications
| Model : | V214M2 | Catalog No : | V214M2 |
| Part Description : | MODEL-IHP | Category : | Induction Motors |
| Stock : | Yes |
Nameplate Specifications
| Output HP : | 5 Hp | Output KW : | 3.7 kW |
| Frequency : | 60 Hz | Voltage : | 230 V |
| Current : | 22.7 A | Speed : | 3530 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Duty : | Continuous | Insulation Class : | F |
| Frame : | 184TDZ | Enclosure : | Open Drip Proof |
| Overload Protector : | No | Ambient Temperature : | 40 °C |
| UL : | Recognized | CSA : | Y |
Technical Specifications
| Electrical Type : | Capacitor Start | Poles : | 2 |
| Rotation : | Counterclockwise | Mounting : | Round |
| Motor Orientation : | Horizontal | Drive End Bearing : | BALL |
| Opp Drive End Bearing : | BALL | Frame Material : | Rolled Steel |
| Shaft Type : | Keyed | Overall Length : | 17.32 in |
| Frame Length : | 12.00 in | Shaft Diameter : | 1.000 in |
| Shaft Extension : | 3 in | UPC : | 786674066831 |
| Weight : | 108.00 LB |
Additional Information
Century Product Catalog
Warranty
