KDI Paragon Classic Standard Competitor Full Height Starting Platform Less Anchor
- Brand
- Paragon Aquatics
- SKU:
- 16-1008
- Weight:
- 60.00 LBS
- Shipping:
- Free Shipping
4 Great reasons to buy from us:
Standard Dual Leg FULL HEIGHT PLATFORM
Models # 23029 to 23055 Competitor Standard Dual Leg (FULL HEIGHT) Less Anchor
Our Premier Starting Platforms with versatile design
The Competitor platform (dual leg models) is our premier starting platform. This versatile design accommodates our standard tops (24 in. x 20 in.) as well as our track start tops (32 in. x 24 in.). The competitor style platforms provide the ease of optional custom graphics to your top. All Competitor anchor systems (patented) offer the feature of installing the platform without tools and come in two types of anchor assemblies, 6 in. Competitor (for anchor setbacks of under 30 in.) or 10 in. Competitor (for anchor setbacks of over 30 in.).
- UV inhibited polypropylene top
- Optional Colors and Graphics
- Long Reach Standard Competitor - Single Step, Track Start Competitor Side Step Full Height, and Classic Standard Competitor - use 6 in. competitor anchor
- Long Reach Standard Competitor - Dual Step and Track Start Competitor Rear Mount - use 10 in. competitor anchor
- Track Start Competitor Side Step Full Height and Long Reach Track Start Competitor Rear Mount - 32 in. x 34 in. "track-type" start used by many competitive swimmers.
- Track Start Competitor Side Step Full Height and Long Reach Track Start Competitor Rear Mount - gives swimmers extra fast take off.
Platform top consists of a 1-1/4" thick UV inhibited 24" x 20" polypropylene top with patent-pending, cross-grooved, non-skid, white sand finish
How to select the Paragon Starting Platform Model for your venue in 5 easy steps.
When choosing a starting platform, your first consideration should be (1) the size of the platform
top. (Note: All ruling bodies call for a minimum of 20" x 20" starting platform tops.) Depending
upon size (2), you have a choice of single (Paraflyte or Quickset Anchor) or dual legs. (3) Select the
anchor style (Paraflyte, Quick Set or Competitor). (4) Then select color and graphics. (Standard sand
finish is white) (5) Select the specific model. To view the options CLICK HERE
The Long Reach Standard is designed for deck level pools with wide overflow gutter systems. The anchor setback (“B” dimension) is fixed at 34-1/2".

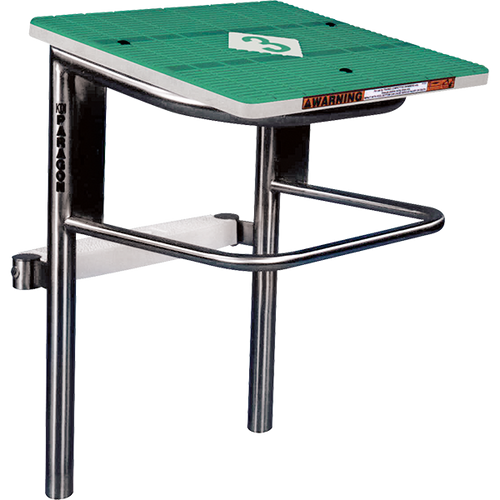

Classic Standard Competitor
This Dual Leg design utilizes the standard size top (24" x 20") and offers the opportunity to add graphics.
The anchor setback (“B” dimension) is fixed at 18".
Uses 6" Competitor Anchor I.D. No. 23103
Customize your New Sandtop Starting Platforms
Graphics
We have added this new and exciting feature. We are proud to present you with this custom item that will offer expanded design options (i.e., school or team logo).
Paragon Aquatics is again leading the field with new and innovative products.
Optional Custom Logo Upgrade (Additional Cost)
Colors
Yellow Black Blue Cranberry Green White Red
Standard Color is White
Adding color is an option (Additional Cost). We're able to match any color within a color-coding system such as the Pantone Color Matching System. Virtually all school colors are match-able.
Color Upgrade I.D No. 23990C
Placing Orders:
All starting platforms are custom made to order using the unique specifications of your pool. The Order Information Sheet and the Gutter Detail Form must be filled out to give us your exact measurements to insure your facility gets the proper starting platform. Other helpful worksheets can be found under the Additional Information Tab.
Email completed forms to sales@waterlinetech.com or Fax them to 714-564-9300. Please call us at 1-800-464-7762 if you have any questions.
WARNING: Starting Platforms are to be used only by trained competitive swimmers. Only shallow racing dives should be executed. Impact with the pool bottom can cause serious injury. Please refer to applicable codes and regulations for your specific installation
REFER TO YOUR OWN LOCAL, MUNICIPAL AND STATE STATUTES, ORDINANCES, RULES AND REGULATIONS.
A" dimension = height from the pool deck to the top of the platform below the top. "B" dimension = distance form the insie pool wall to the centerline of the anchor. See "How to Size Your Starting Platforms" in the Related Items section.
Note: All platforms are furnished with a tilted top unless otherwise specified.
