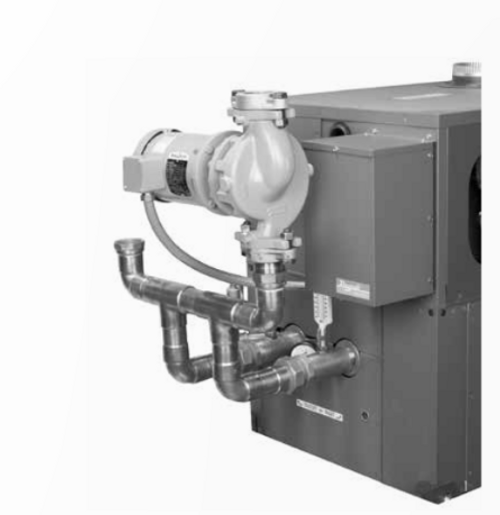

Raypak - Hi Delta P502C - P2072C Commercial Heater Cold Water Run

Description:

The Hi Delta® line of fan-assisted combustion units offers solid performance with low emissions, flexible control, and easy-to-understand diagnostics.

Features:

83.1% efficiency
Multiple vertical venting and sidewall venting options. No extractor required for sidewall applications up to 70ft on room air.
All models indoor/outdoor certified
Patented burner “security blanket” enhances staged combustion, minimizes installation/start-up issues, and protects burners from metal fatigue.
105ºF minimum inlet water temperature
Cupro-nickel finned-tube heat exchanger with brass headers. AB 1953 compliant.
VERSA IC® control package with LCD display
Status display lights
Cascade control of up to 8 units, no external sequencer required.
Diagnostics center with history in English , not in codes
Modbus RTU BMS port (RS485)
0-10 VDC BMS Interface (set point or direct drive)
Ducted combustion air capable. TruSeal® CSA-Certified direct-vent available.
Certified to the ANSI Z21.56 pool heater standard.

Compare:

-------------------------------------------------------------------------------------------------------------------------------------------------

---------------------------------------------------------------------------------------------------------------------------------------------------

Additional Information:

Versa IC Installation Guide

Temp Tracking Installation Guide

Versa IC Submittal

Hi Delta Submittal

Hi Delta Pump Submittal

Hi Delta Outdoor Stack Submittal

SureRack Submittal

Warranty
